Hit ratio¶

The hit rate simulation code is available here.

Every chart also shows optimal, Belady's MIN policy. It knows the whole trace: it evicts the entry that is needed again furthest in the future, and it doesn't admit an entry that would be evicted first. No cache can beat it on the same trace, which makes it a useful upper bound. It levels off too, because the first access to a key is a miss for any cache.

Traditional traces¶

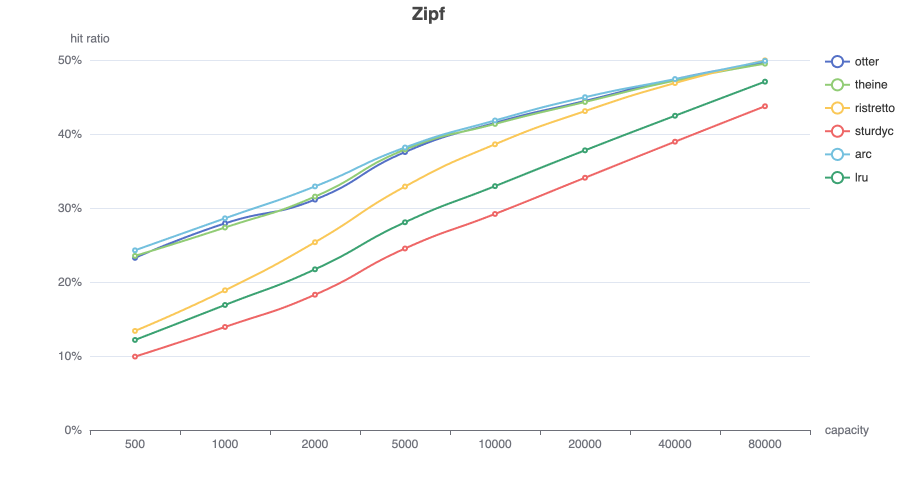

Zipf¶

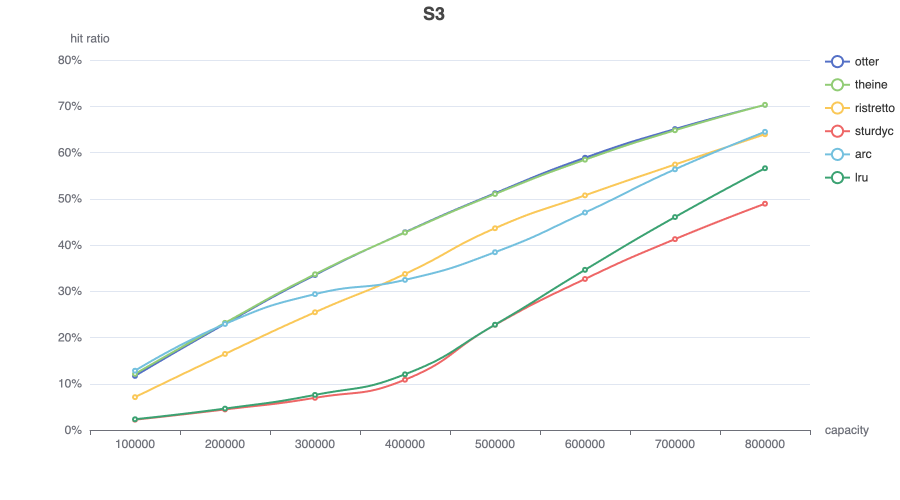

S3¶

This trace is described as "disk read accesses initiated by a large commercial search engine in response to various web search requests.".

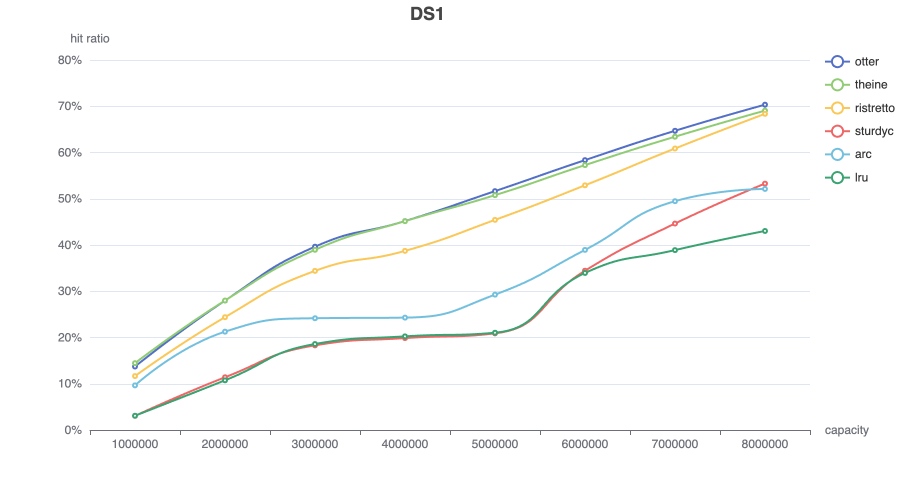

DS1¶

This trace is described as "a database server running at a commercial site running an ERP application on top of a commercial database.".

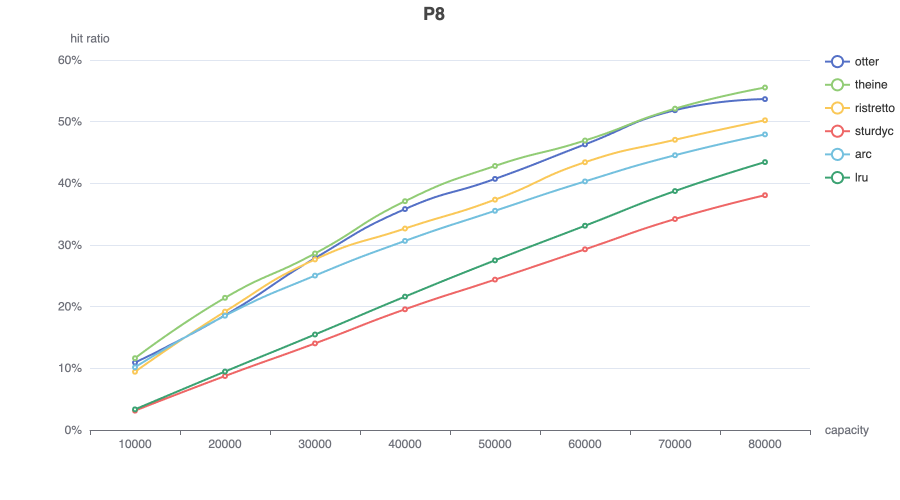

P8¶

The trace P8 was collected from workstations running Windows NT by using Vtrace which captures disk operations through the use of device filters.

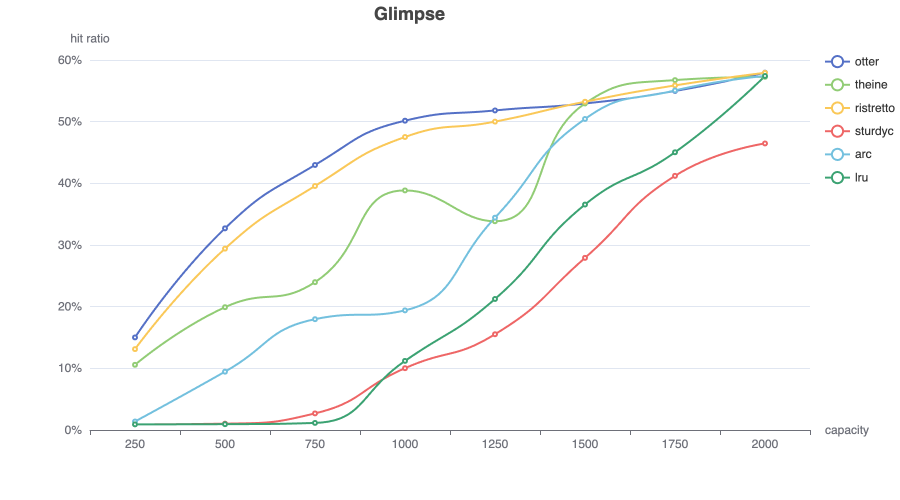

Glimpse¶

This trace exhibits a looping access pattern.

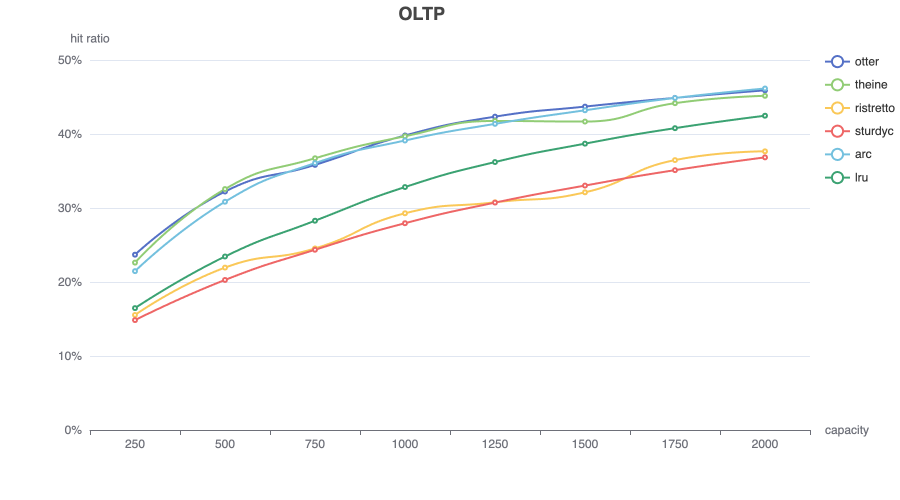

OLTP¶

This trace is described as "references to a CODASYL database for a one-hour period.".

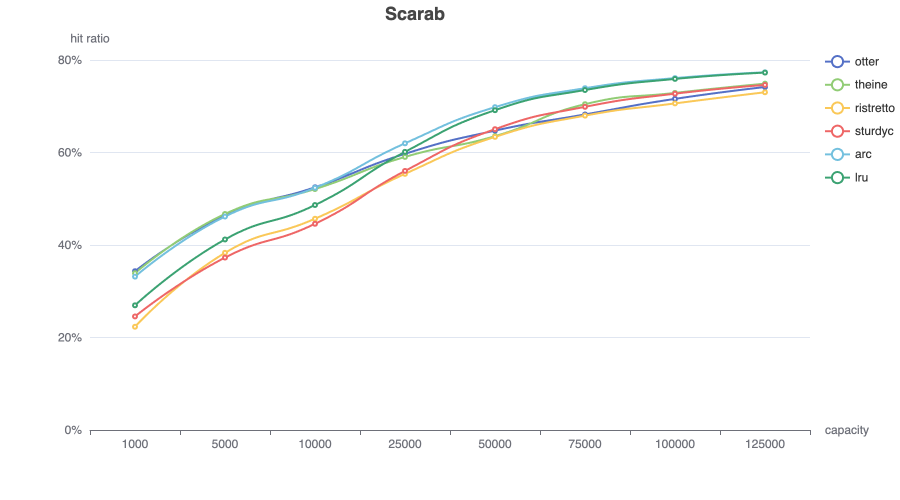

Scarab¶

Scarab Research 1 hour database trace. Frequency is a negative signal in this workload.

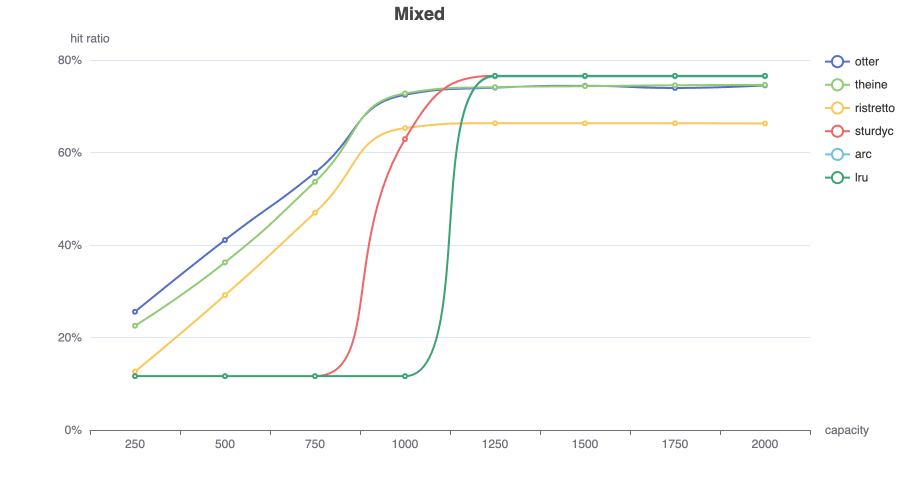

Mixed¶

This workload shifts between a recency-skewed trace (Corda) and a frequency-skewed trace (Lirs' LOOP).

Conclusion¶

Otter's W-TinyLFU provides a top-tier hit rate in all workloads. It does so while remaining simple, does not require non-resident entries, and has a low memory footprint. The policy provides a substantial improvement to LRU across a variety of workloads, making it a good choice for a general purpose cache.

Both Otter's and Theine's W-TinyLFU implementations demonstrate nearly identical hit rates across most workloads. However, on the Glimpse trace, Theine exhibits unexpected hit rate fluctuations while Otter maintains stable performance.

Ristretto demonstrates solid performance on frequency-biased workloads (e.g., database page caches, search, and analytics). However, it may face challenges with recency-biased workloads (message brokers, financial applications, etc.).

Sturdyc showed limited effectiveness in these tests, regularly trailing behind basic LRU's hit rate performance.
